Azure Cloud Honeypot & Threat Analysis

Project Overview

In this project, I deployed a purposely vulnerable “Honeypot” in Microsoft Azure to monitor unauthorized access attempts and brute-force campaigns. The objective was to observe real-world attack vectors, analyse the velocity of automated botnets, and practice host-based forensics using Windows Event Logs.

1. Infrastructure Deployment

I provisioned a Windows 10 Virtual Machine within the Azure ecosystem. To ensure the instance acted as an effective target, I intentionally configured the environment to be non-compliant with standard hardening practices:

• Host Type: Azure Standard B-Series VM.
• Operating System: Windows 10 Pro.
• Network Posture: Publicly addressable IP with no edge filtering.

2. Security Configuration (The “Bait”)

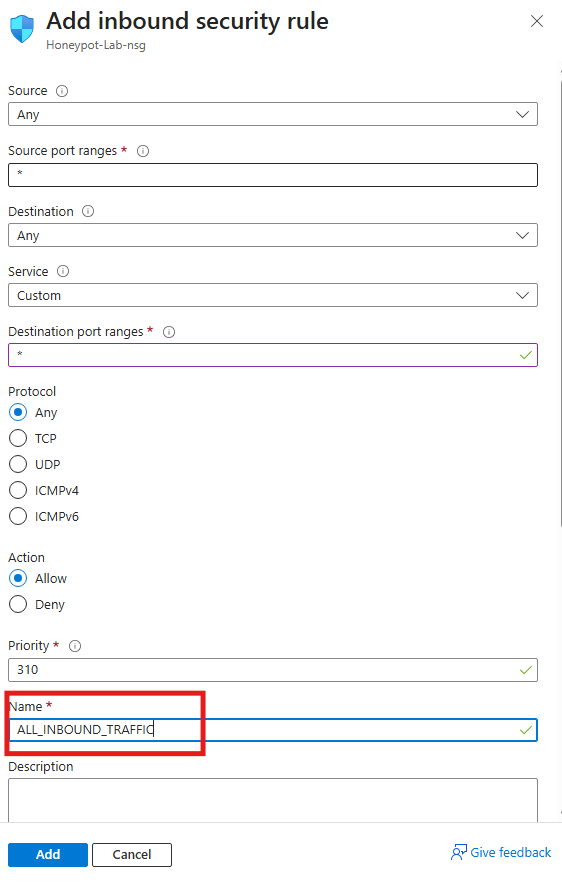

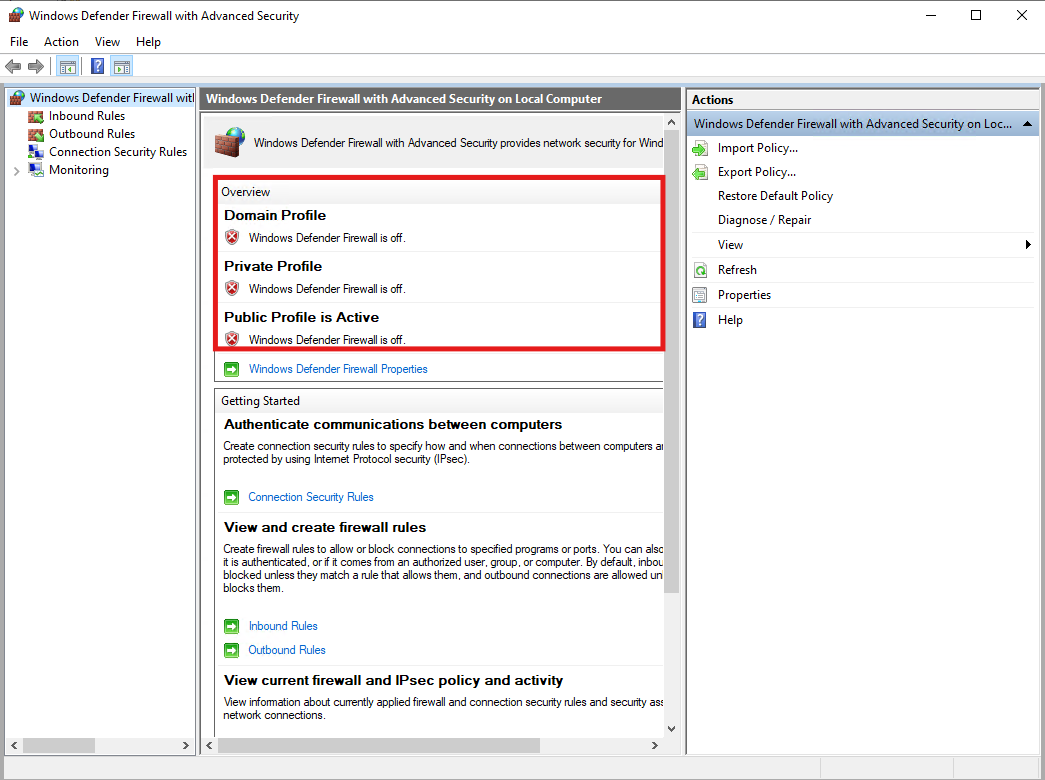

External Network Layer: I modified the Azure Network Security Group (NSG) to expose the machine to the open internet. I created a custom inbound rule (ALL_INBOUND_TRAFFIC) allowing ingress traffic from Any Source on Any Port, effectively removing the cloud-layer firewall. Internal Host Layer: After provisioning, I established an administrative session via RDP to configure internal security policies. Using the Windows Firewall console (wf.msc), I systematically disabled all firewall profiles (Domain, Private, and Public) to ensure ICMP echo requests and RDP traffic could reach the kernel.

3. Attack Simulation & Validation

To validate the monitoring pipeline before exposing the host to live internet traffic, I executed a controlled brute-force attack against the honeypot using Kali Linux. I utilized NetExec (formerly CrackMapExec) to simulate a credential stuffing attack against the RDP service (Port 3389).

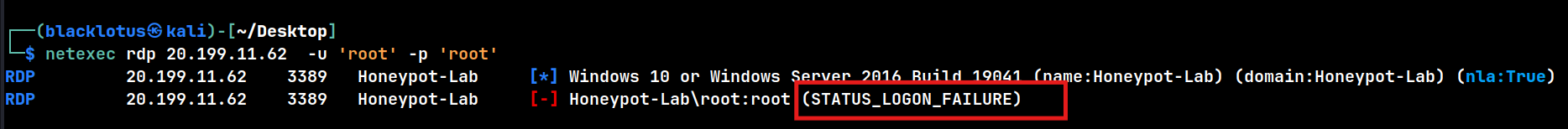

netexec rdp 20.199.11.62  -u 'root' -p 'root'

Result: The attack successfully triggered a STATUS_LOGON_FAILURE response, confirming that the authentication request bypassed the network perimeters and interacted with the internal OS authentication mechanism.

4. Log Analysis & Detection

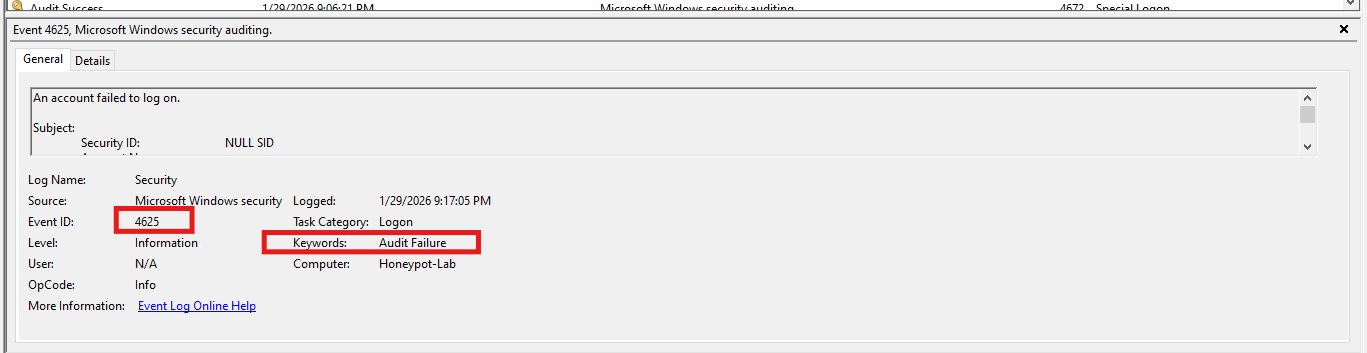

Inside the VM, I utilized Windows Event Viewer to conduct host-based analysis. The brute-force attempts generated specific forensic artifacts:

• Event ID: 4625 (An account failed to log on).
• Log Source: Security.

Critical Analysis: Production vs. Lab

While this project successfully demonstrated the mechanics of a honeypot, a production-grade deployment would require significant architectural changes to meet GRC standards:

1. Log Forwarding: In a real enterprise environment, local logs (Event 4625) are volatile. They must be forwarded to a centralized SIEM (like Azure Sentinel or Splunk) to ensure data immutability and correlation.
2. Network Isolation: This VM was placed in a default subnet. A production honeypot must be strictly isolated in a DMZ or a separate Virtual Network (VNet) to prevent lateral movement if an attacker successfully compromises the machine.
3. Emulation vs. Interaction: This was a “High Interaction” honeypot (a real OS). Production environments often use emulation software (like T-Pot or Cowrie) to simulate services, reducing the risk of providing an attacker with a fully functional computing resource.

Key Outcomes

• Cloud Infrastructure Management: Successfully deployed and configured a custom Azure Virtual Machine and manipulated Network Security Groups (NSGs) to create a controlled vulnerability environment.
• Red Team Simulation: Gained hands-on experience with offensive security tools (Kali Linux, NetExec) to simulate real-world brute-force attacks and validate network reachability.
• Blue Team Log Analysis: Developed proficiency in Windows Event Forensics, specifically identifying Event ID 4625 to correlate network traffic with authentication failures.
• Attack Chain Visualization: Validated the complete attack lifecycle, monitoring how external threats traverse cloud firewalls to impact internal operating system logs.
